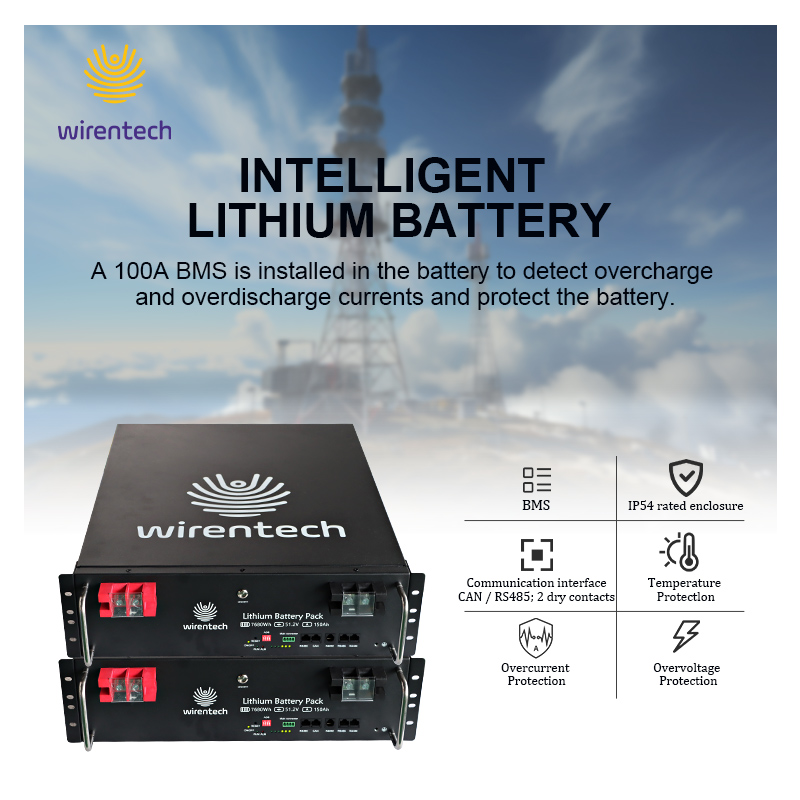

Composed of 15 prismatic 3.2V cells, WT48150 has been tested at 6000+ deep discharge cycles to 80% DOD @68 F with iP54 enclosure and set up RS282, RS485, Can port. it supports max 100Acharge current and max 82 in parallel according to customers' needs. it can support the operation ovarious household appliances and telecom station backup. 100A BMS is set in the battery to detect the overcharge and overdischarge of the current to protect the battery.
FEATURES & BENEFITS
Immunity to power grid fluctuations：
Switch the backup power supply at 0ms, support ±20% voltage fluctuation, and ensure zero interruption operation of the base station；
Minimalist deployment：
Standard 19-inch rack-mounted design
Intelligent temperature control：
Low-temperature self-heating + high-temperature power-limiting technology, suitable for harsh climates such as highlands/deserts/polar regions；
TCO Revolution：
Save 70% of operation and maintenance costs compared to lead-acid batteries
KEY SPECIFICATIONS
| Voltage | 51.2V |
| Capacity | 150Ah |
| Energy | 7200Wh |
| Nominal Voltage | 48 Volts |
| Nominal Capacity | 150 Ah @ 0.2C. 35℃ |
| Installation type | Standard 19"rack |
| Communication | CAN /RS485 |
| Certification | CE,UN38.3 |
| Terminal | M6,torque 4 N·m |
| Max. charging | 4800W |
